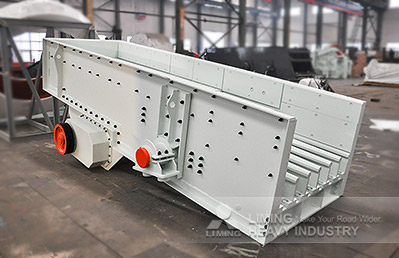

FH Series Vibrating Feeder

Feeding Size:
Processing materials


FHSeries Vibrating Feeder is new equipment which takes advantages of large capacity, strong vibration intensity,
stabilization and reliability. Not only does the plant feed materials continuously and equably, but also it is good at
coarse screening. Because of this, the equipment is widely used in mining, metallurgy, construction, coal, chemical, etc. industry.
Learn More About Liming® FH Series Vibrating Feeder
Strong vibration intensity, high screening efficiency
Adopting advanced idea and technics, FH Series Vibrating Feeder takes advantages of stronger vibration intensity,
larger capacity and higher screening efficiency. The capacity of FH Series Vibrating Feeder is 1.5 times larger than
traditional vibrating feeder.
Simple adjustment, wide application
FH Series Vibrating Feeder adopts Y3 series motor which is efficient and energy saving, and the frequency transformer
is equipped to adjust the obliquity accurately. There is a pin structure in the spring support realizing adjustment
from 0° to 15° which can satisfy the requirements of feeding and screening about different materials.
More reliable EV Series Vibration Exciter
Amplitude is adjustable. FH Series Vibrating Feeder is equipped with a full range of EV Series Vibration Exciter. There are
5 kinds of vibration exciter from EV1-EV5 can be chose to change the vibration force by adjusting numbers of weights.
Isolate structure. There are two lubrication systems with little influence on any of them making the maintenance time
reduced and overhaul easier. Besides, the fuel consumption of EV Series Vibration Exciter can be saved a quarter of the traditional vibrating feeder’s.
More reliable performance. EV Series Vibration Exciter adopts quality bearing and its vibration intensity has reached the international standard. In a word, EV Series Vibration Exciter takes advantages of high throughput, high screening efficiency, large capacity, long service life, etc.
Anti-blocking bar with grand staircase
High screening probability. The bars with grand staircase has a high drop, which make the materials rolling during moving and touching the bars as soon as possible. Besides, interlaced bars increase the contact between materials and bars and the screening probability is increased.
Long service life. The bars, whose carrying capacity is much stronger, are made of ZGMn13-4 materials. The cross section of cam can make stratification between large grained and granule, and the friction between materials and bars can be reduced therefore the equipment has longer service life.
Avoid blocking up the sieve pore. It is effective to avoid blocking up the sieve pore because of the sieve pore with a shape of comb-finger and bars with high drops.
A feed box which can accommodate materials much more
The rectangular framework, which is support of the inlet, has firm structure. The problem about non-uniform stress won’ t result in the cracking of side-panel, because the plant adopts angle steel to firm its side-panel and outer-panel.
Allow for springs at the inlet in order to adjust silo pressure by changing numbers of springs.
There are malposed springs providing support at the inlet in order to adjust silo pressure by changing numbers of springs.
Unique structure of motor cabinet
Adopting rubber spring with the structure of tensioning, the equipment eliminates the effects that come from the vibrating of feed box on motor, and it takes advantages of long service life and low noise.
Working Principle
FH Series Vibrating Feeder’s dual eccentric shaft exciter generates excitation force. A gear pair-connects the two eccentric shafts, enables the shafts rotate to opposite direction with same speed. Through motor driving, the excitation force generated constantly, the material slides and bounces ahead to crusher on the feeder groove. When material go through the feeder’s grid bars, the smaller material will fall down through the gap between grid bars and be sent to next crushing process. It enables the feeder to pre-screen material and fully ensures the crushing plant’s high crushing efficiency and capability.

FH Series Vibrating Feeder Specifications

Specifications - Technical Data

Model Feed Chute Size W×L(mm) Application Obliquity(°) Bar Length(mm) Maximum Feed Size(mm) Speed (r/min) Capacity(t/H) Power KW(kw) Matched Jaw Crusher
FH1036 1000×3600 Stationary crushing plant
Mobile crushing plant
8 (0-15) 2×900 600 650-900 350 15 HJ98/HJ110/
FH1245 1200×4500 2×900 700 600 22 HJ110/
FH1260 1200×6000 3×900 700 600 22 HJ125/
FH1560 1500×6000 Stationary crushing plant 3×900 900 900 30 C6X140/
FH1860 1800×6000 3×900 1100 1200 37 C6X160/
FH2160 2100×6000 3×900 1300 1600 45 C6X200

1. Any change of European Type Jaw Crusher technical data shall not be advised additionally.


Notice: Any change of FH Series Vibrating Feeder technical data shall not be advised additionally.
