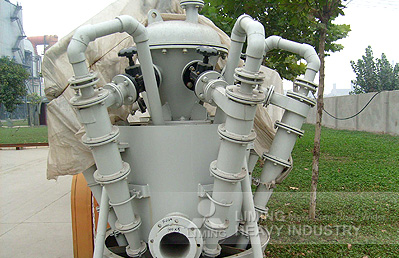

Cyclone

Feeding Size:
Capacity: 30-3150 m3/h
Processing materials：
Cyclone system is widely used in grinding, slurry dewatering, removing mud, micro-fine material classification, as well as tailings filling, dams, recycling and other processes.

[email protected]

The cyclone is widely used inc losed-circuit grinding system of Chinese black, colored, non-metallic mines;slurry dewatering, removing mud, micro-fine material grading,and tailings filling,dams,recycling and other process.As the cyclone is high classification efficiency, simple structure, large capacity, small footprint, etc., so it is widely favored by users.

Cyclone Specifications

Model Specification	Diameter (mm)	Cone angle	Classifying particle size (mm)	Processing capacity (m3/h)	Overflow opening Diameter (mm)	opening area (m㎡)	Sediment opening diameter (mm)	Weight (kg)
FXK150×4	150	20	35-75	30-60	25、32、40、50	22×22	16、24、32	1680
FXK150×8	150	20	35-75	60-120	25、32、40、50	22×22	16、24、32	2236
FXK150×12	150	20	35-75	90-180	25、32、40、50	22×22	16、24、32	3074
FXK300×4	300	20	45-105	148-172	65、75	47×60	35、40	2530
FXK300×6	300	20	45-105	222-258	65、75	47×60	35、40	3477
FXK350×4	350	20	50-110	296-360	95、105、115	80×65	60、70、80	3550
FXK350×6	350	20	50-110	384-440	95、105、115	80×65	60、70、80	5597
FXK350×12	350	20	50-110	888-1080	140、160、180	110×120	60、70、80	10537
FXK500×4	500	20	60-120	680-880	140、160、180	110×120	70、90、110	6645
FXK500×6	500	20	60-120	1020-1320	140、160、180	110×120	70、90、110	8870
FXK660×6	660	20	70-150	1830-3150	203、254、305	225×115	152	18057

Notice: Any change of Cyclone technical data shall not be advised additionally.
